Size: 147*147*45mm
CPU: Intel Core i5, i7, i9 12/13th gen
Graphic Card: Integrated Graphics
Interface: DC, RJ45*2, HDMI*2, Type-C, USB*6, 3.5mm Audio

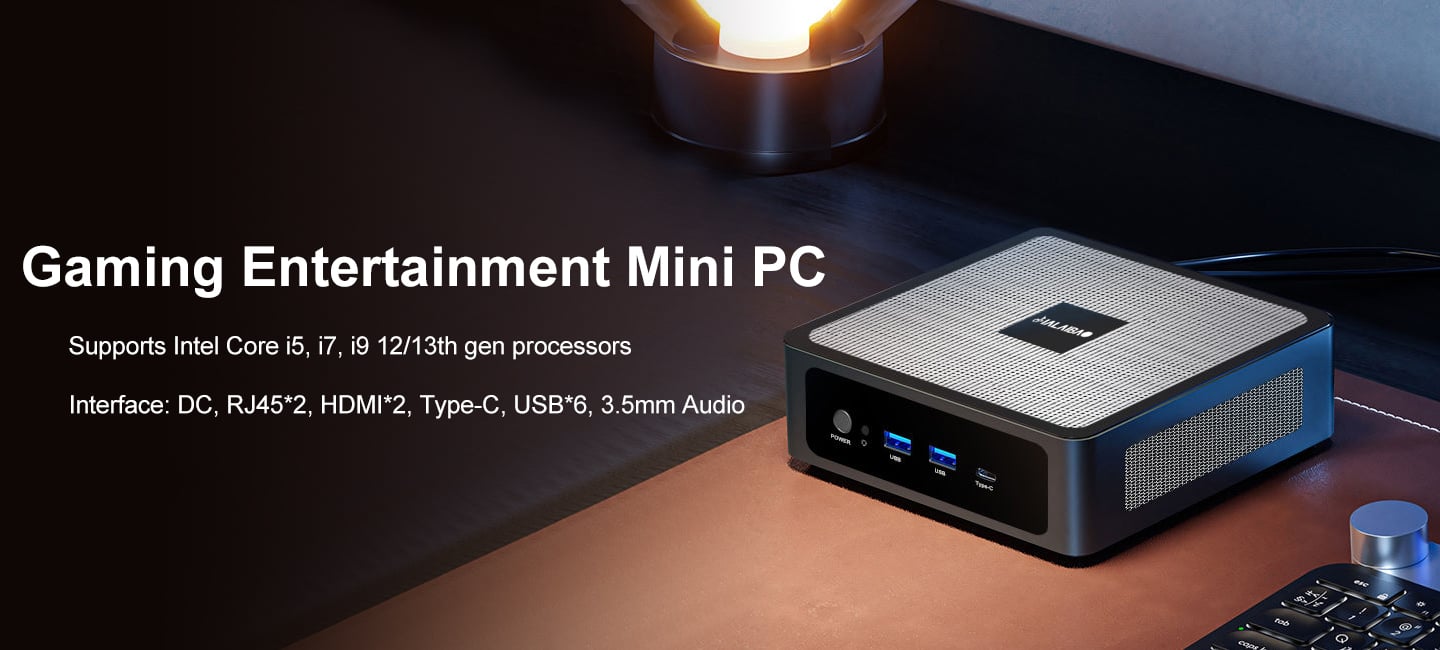

The JMIS06 model Mini PC delivering robust performance tailored for both business and industrial applications. Powered by Intel® Core™ i5, i7, i9, 12th 13th gen processors, it achieves the perfect balance of power and efficiency. Customize it to your preferences with various multi-storage configurations for rapid boot-up and app loading.
| Model No. | JMIS06 |
| CPU | Intel Core i9-13900H / 12900H; Intel Core i7-12700H / 12650H / 1370p / 1360P; Intel Core i5-1350p / 1340P / 12450H |
| Whole unit power consumption | 30-110W |
| Memory capacity | 4G/8G/16G/32G Optional |
| Memory specifications | Notebook memory DDR4*2 frequency support 2666/3200MHz up to 64G |
| Hard disk capacity | 128G/256G/512G/1T/2T Optional |
| Hard disk specifications | NVME 2280 M.2*2 pcie 3.0/4.0 |
| Display specifications | Support up to 4K resolution 4096/3840*2160@60Hz |

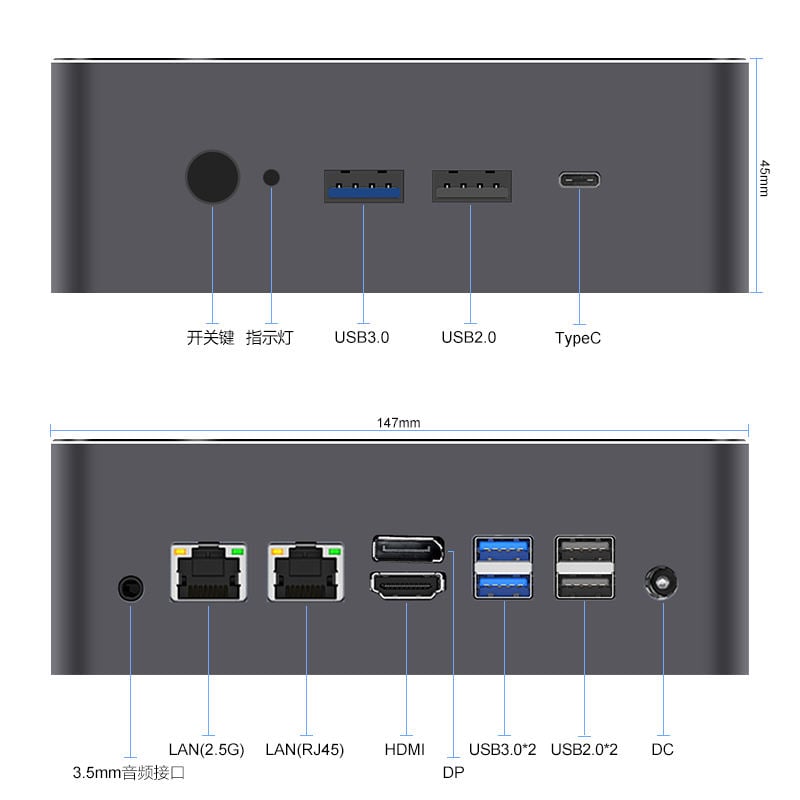

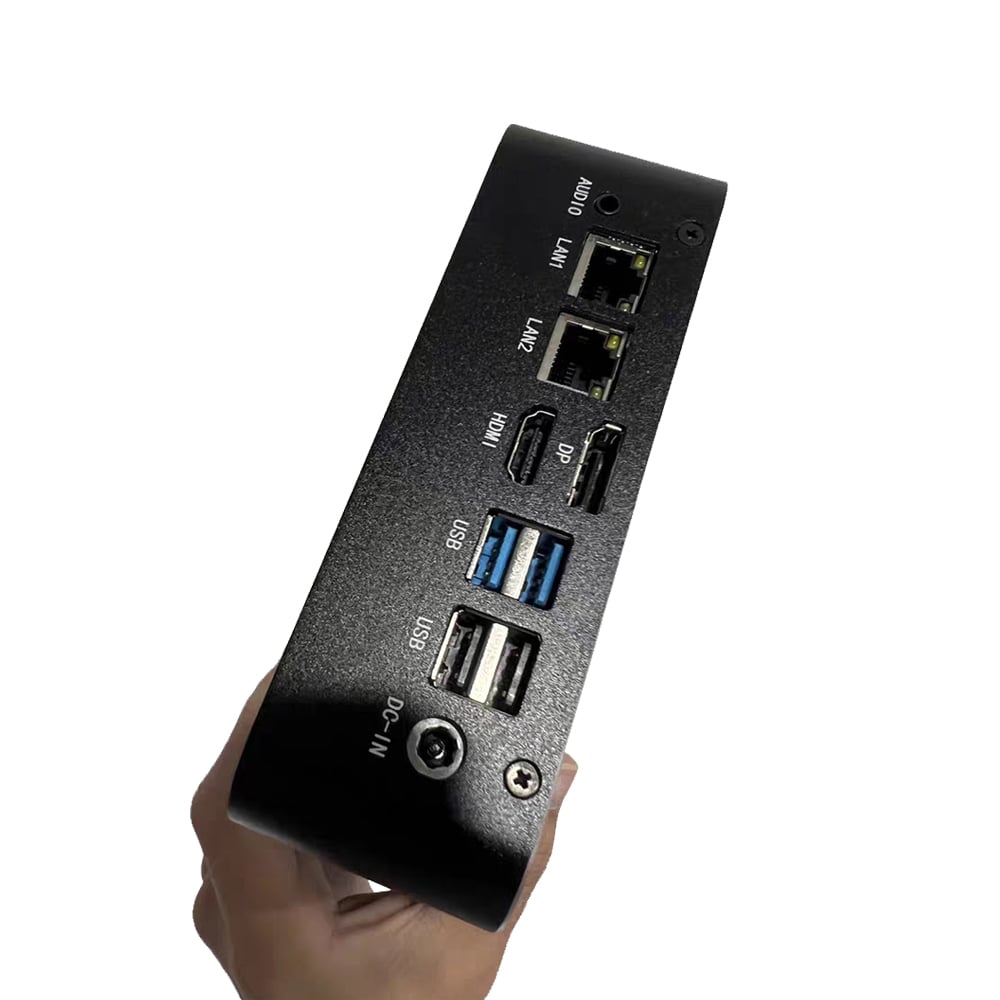

| External interfaces | USB3.0 *3 / USB2.0 *3 / HDMI *1 / DP *1 / TypeC *1 / RJ45 *1 / 3.5mm audio interface |
| WiFi/Bluetooth parameters | RTL8852AE M.2 WIFI6 wireless card + 5.2 Bluetooth 2.4G:574Mbps / 5G:1201Mbps |
| Power supply | The diameter of the DC head is 2.5mm, and it is recommended to use 19V3.42A or above power supply |
| Mainboard size | 140mm * 140mm |
| Host size | 147mm (L)*147mm (W)*45mm (H) |
| Operating environment | Working temperature: -10℃~45℃; working humidity: 5%~95% relative humidity, no condensation |
| Notes: Customer-specified motherboards are supported. It should be noted that the interface between different motherboards will be a little different, and the final interface needs to be confirmed according to the motherboard. |
|
