JLBE

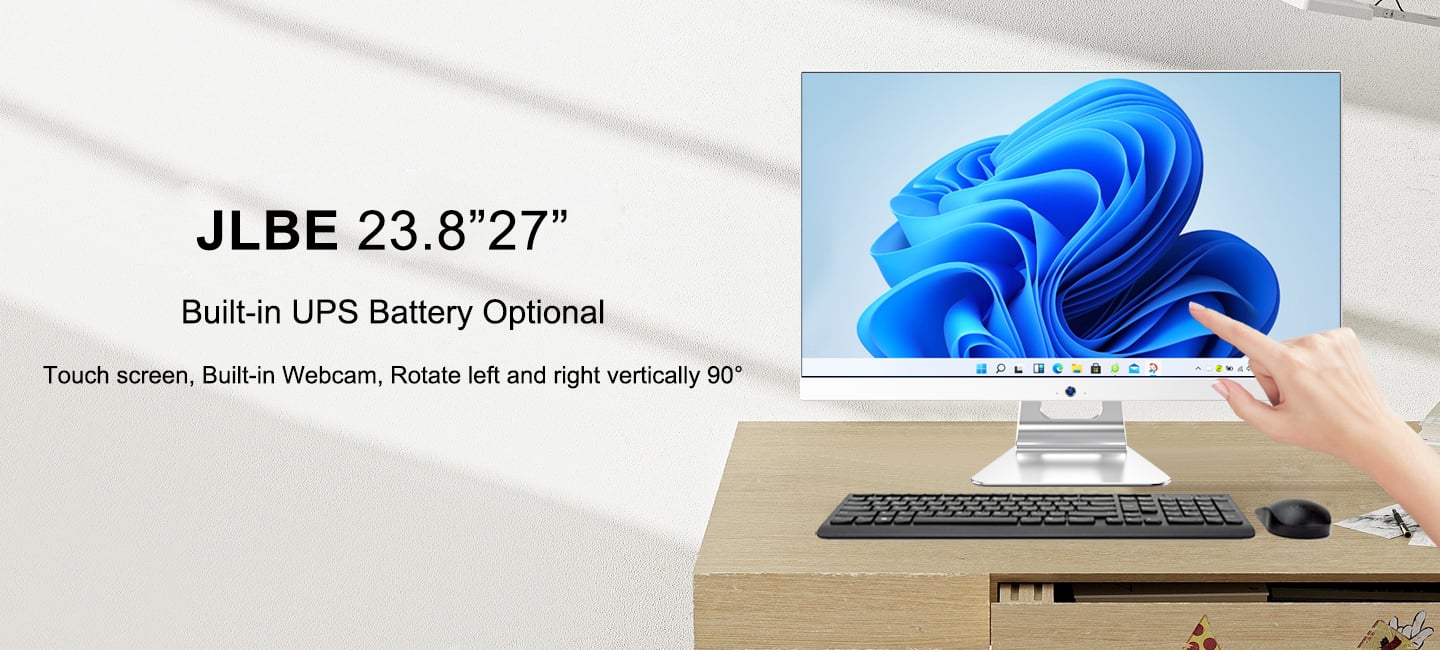

Showroom touch presentation / Training institution All-in-one pc

Color: Black / White

Size: 23.8-inch / 27-inch

Graphic Card: Integrated Graphics

Feature: Touch screen, Built-in Webcam, Rotate left and right vertically 90°

Inquiry now
  • Description
  • Parameter
  • More Products
  • Inquiry
Description

Unbounded multitouch brilliance

The beautiful 23.8-inch display on JLBE model has an incredibly thin 2.0 mm bezel.

The upshot is a big, beautiful screen in the smallest conceivable space — with a remarkable 93% screen-to-body ratio. With touchscreen technology, JLBE model makes interacting with your various applications easier than ever, putting every command at your fingertips. Also, the panel serves up IPS-level visual brilliance, delivering 100% sRGB color gamut.


Parameter

Model No. JLBE
1. Frameless screen design;
2. Aluminum Alloy Base;
3. Built In UPS Battery Optional;
4. Built-in Camera;
5. Support Pitch tilt -5°~90°, Rotate left and right vertically 90°;
6. Separate CPU Cooler Vent-pipe;
7. VESA Wall-mounted Optional
8. Suitable for high-end Business office, School education, Home entertainment and other industries.
Item Description Remark
Display Screen 23.8 / 27 inch IPS FHD Screen 23.8-inch, Touch screen optional
27 inchs, 2K screen optional
FHD 1920*1080 Pixels  √
250nits typical brightness √
High-speed Response √
Viewing Angle H:178°,V:178° √
10 Points Capacitive Touch Screen 23.8 inch Support
CPU Intel Celeron, Pentium, Core i3 / i5 / i7 / i9 Optional
Mainboard H61 / H65 / H81 / H310 / H510 / H610, etc. Optional
RAM 4GB~32GB Optional
Graphics card Intel HD graphics card ( Integrated Graphics ) √
HDD 500GB/1TB HDD; 128GB~1TB SSD Optional
Interface 2*USB2.0 √
4*USB 2.0 / USB 3.0 / USB 3.1 According to the motherboard design.
1*Type-C Optional
1*HDMI √
1*VGA/COM, 1*RJ45, 1*Audio In & Out √
Speaker 2*3W High-fidelity Speakers √
WiFi Support 802.11b/g/n √
Bluetooth BT4.0 (BT5.2 Optional) √
LAN 1000Mbit LAN √
Audio interface Headphone Output Interface, Microphone Input Interface √
Video interface VGA, HDMI √
Camera Built-in camera & Dual Mic 2.0M / 3.0M / 5.0M Camera, Optional
Materials Alloy Base, ABS Plastic Shell √
Power supply 110-220V/100-240V √
Accessories Adapter, User manual, Power cord multi language keyboard & mouse optional
Packing size 21.5-inch:
1 unit / carton: 60*40*20cm.
23.8-inch:
1 unit / carton: 68*44*22cm. 		The size is for reference only, there may be errors in the actual size ±0.5cm.
Gross weight 21.5-inch:
1 unit / carton: 6kg.
23.8-inch:
1 unit / carton: 9.1kg. 		The weight is for reference only, there may be errors in the actual size ±1kg.
Color Black/White
Notes:
Customer-specified motherboards are supported. It should be noted that the interface between different motherboards will be a little different, and the final interface needs to be confirmed according to the motherboard.
