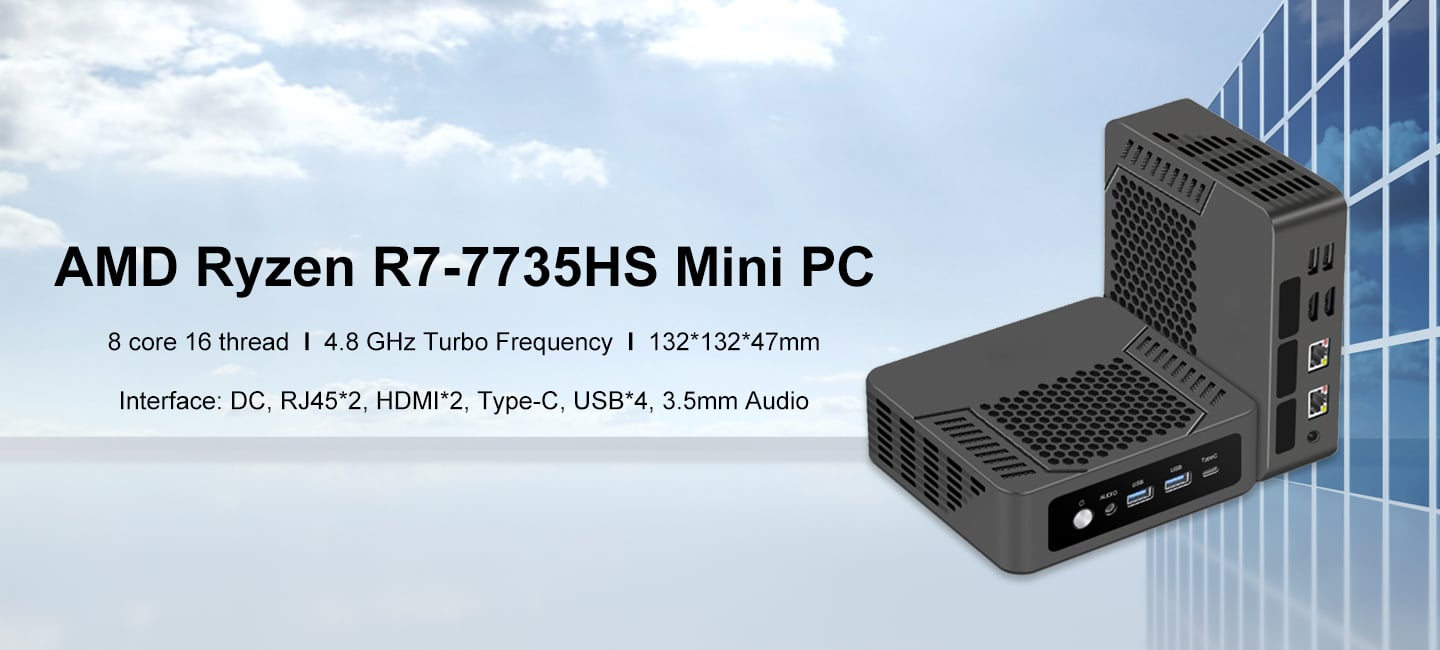

Size: 132*132*47mm
CPU: AMD Ryzen R7-7735HS
Graphic Card: Integrated Graphics
Interface: DC, RJ45*2, HDMI*2, Type-C, USB*4, 3.5mm Audio

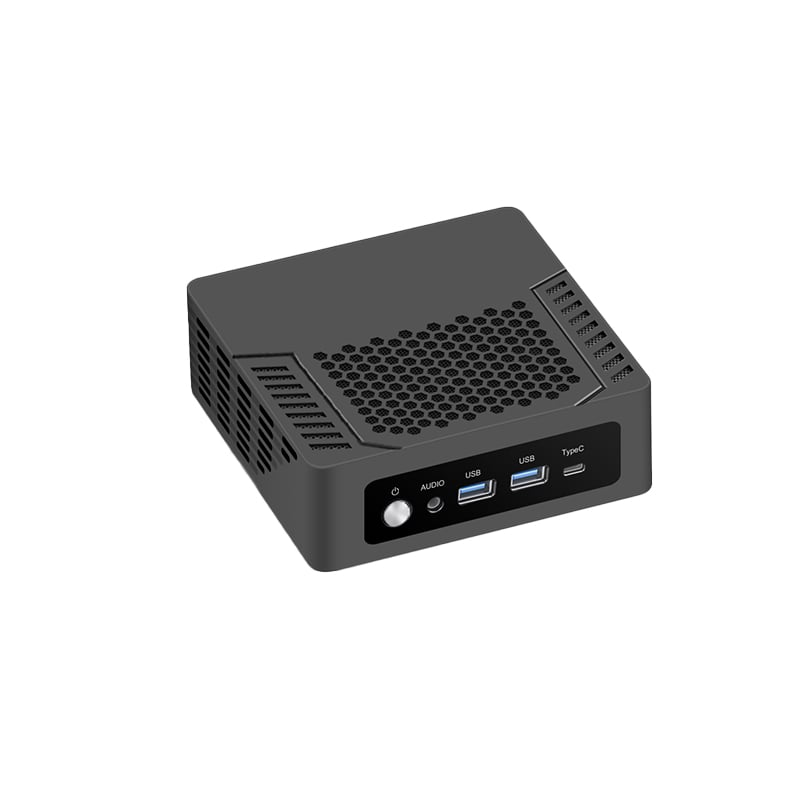

The JMIS04-1 model is no lightweight when it comes to performance. It harnesses the power of t latest AMD Ryzen™ R7-7735HS processor combined AMD Radeon™ graphics and plus multiple storage combinations. There’s also ultrafast PCIe® Gen3 SSD slot and DDR5 support to ensure fast boot times and rapid app loads.
| Model No. | JMIS04-1 |
| CPU | AMD Ryzen™ 7 7735HS |
| Whole unit power consumption | 35-65W |
| Memory capacity | 16GB/32GB/64GB Optional |
| Memory specifications | Supports up to DDR5-4800MHz, single-slot max 32G, total max 64G |
| Hard disk capacity | 128G/256G/512G/1T/2T Optional |
| Hard disk specifications | NVME 2280 M.2*1 pcie 3.0/4.0 |
| Display specifications | Support up to 4K resolution 4096/3840*2160@60Hz |
| External interfaces | USB3.0 *2 / USB2.0 *2 / HDMI2.0 *2 / Type-C *1 / RJ45*2 / 3.5mm audio port / DC-IN |
| WiFi/Bluetooth parameters | WiFi 6 / Bluetooth 5.2, 2-in-1 module |
| Power supply | The diameter of the DC head is 2.5mm, and it is recommended to use 19V3.42A or above power supply |
| Mainboard size | 120mm * 124mm |
| Host size | 132mm (L)*132mm (W)*47mm (H) |
| Operating environment | Working temperature: -10℃~ 45℃; Working humidity: 5%-95%; Relative humidity, no condensation |
| Notes: Customer-specified motherboards are supported. It should be noted that the interface between different motherboards will be a little different, and the final interface needs to be confirmed according to the motherboard. |
|
