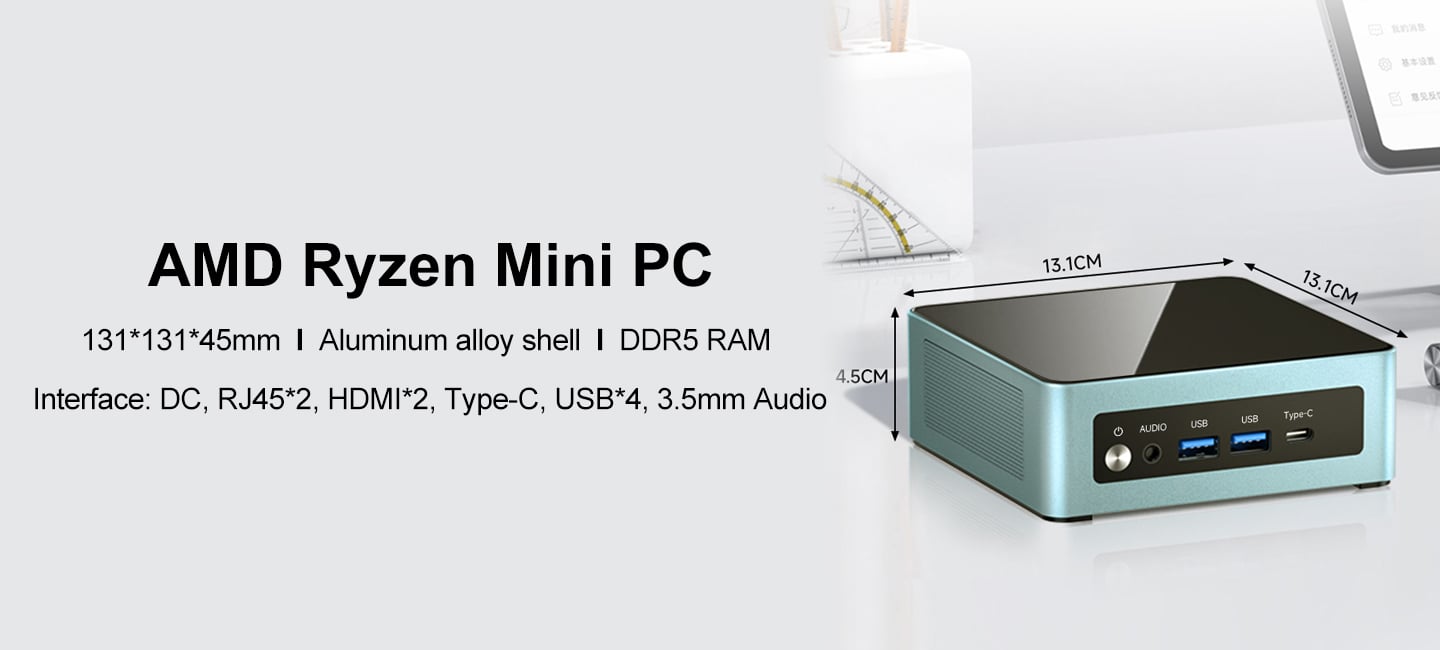

Size: 131*131*45mm
CPU: AMD Ryzen R5, R7, R9
Graphic Card: Integrated Graphics

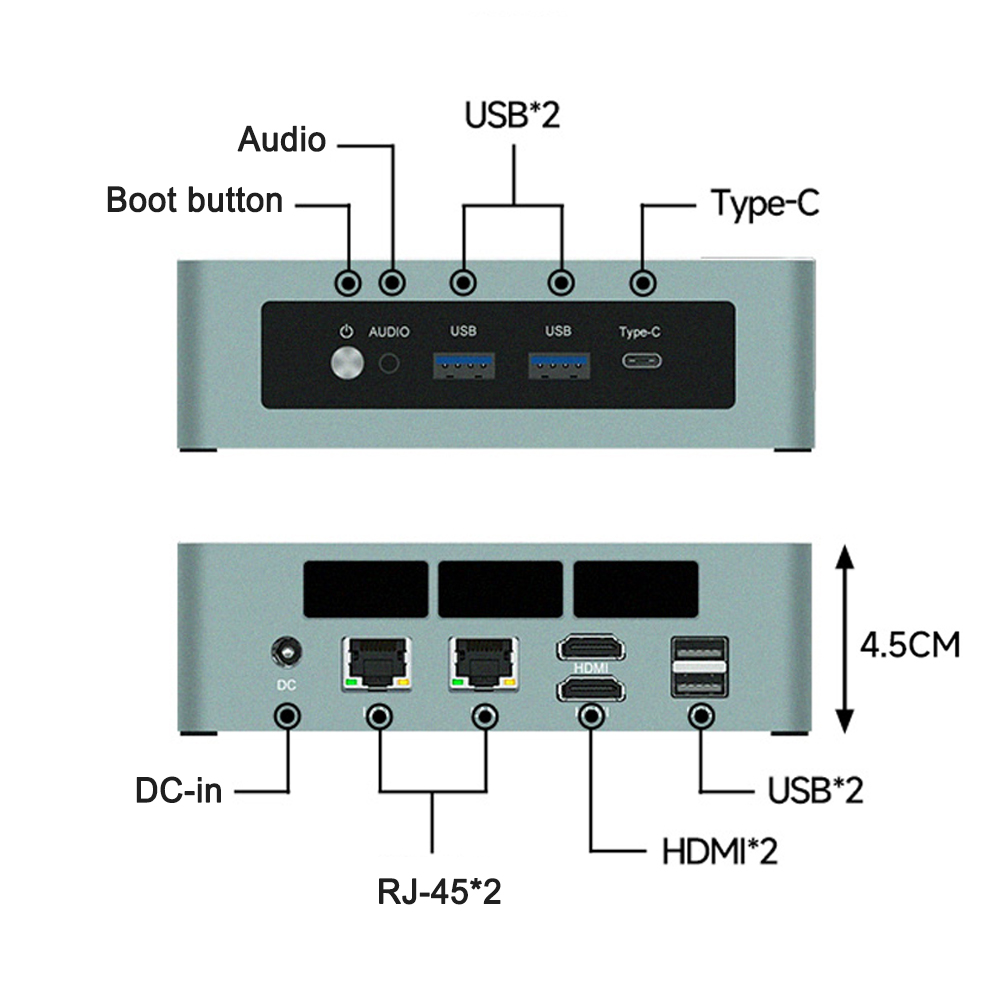

Interface: DC, RJ45*2, HDMI*2, Type-C, USB*4, 3.5mm Audio

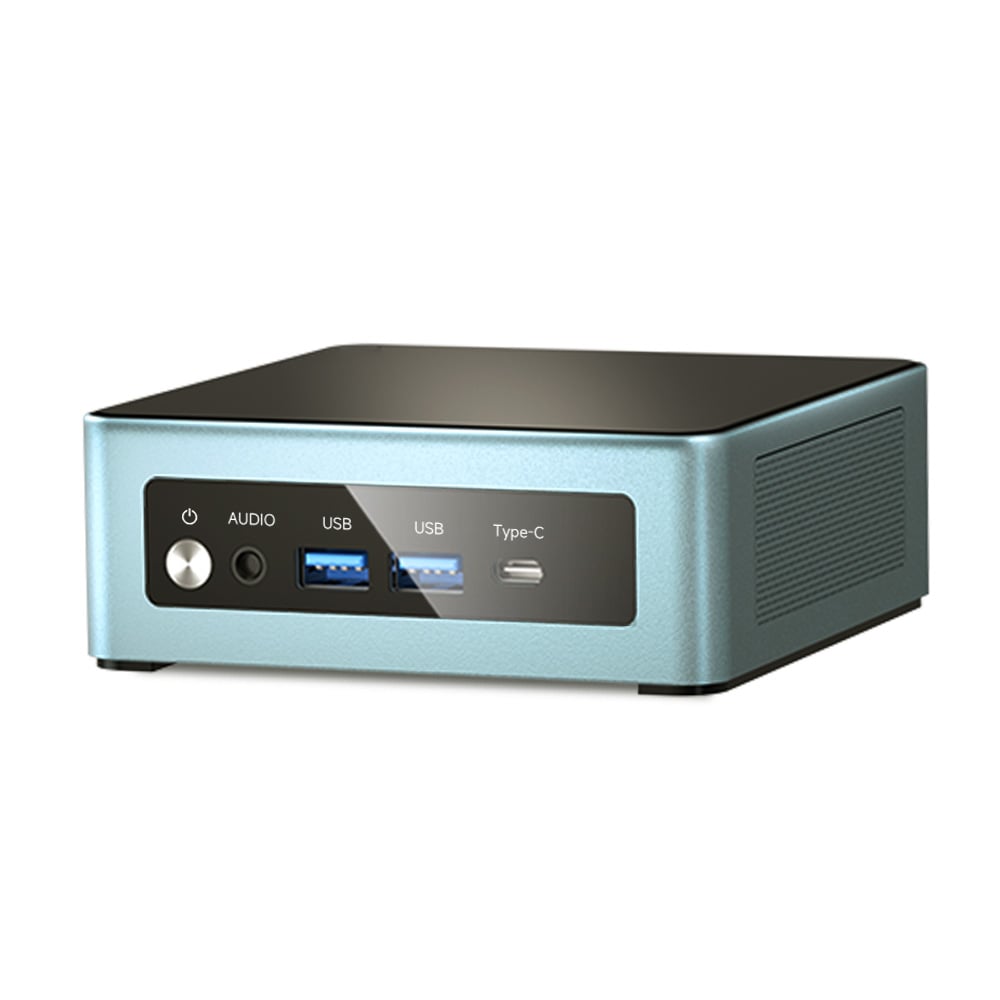

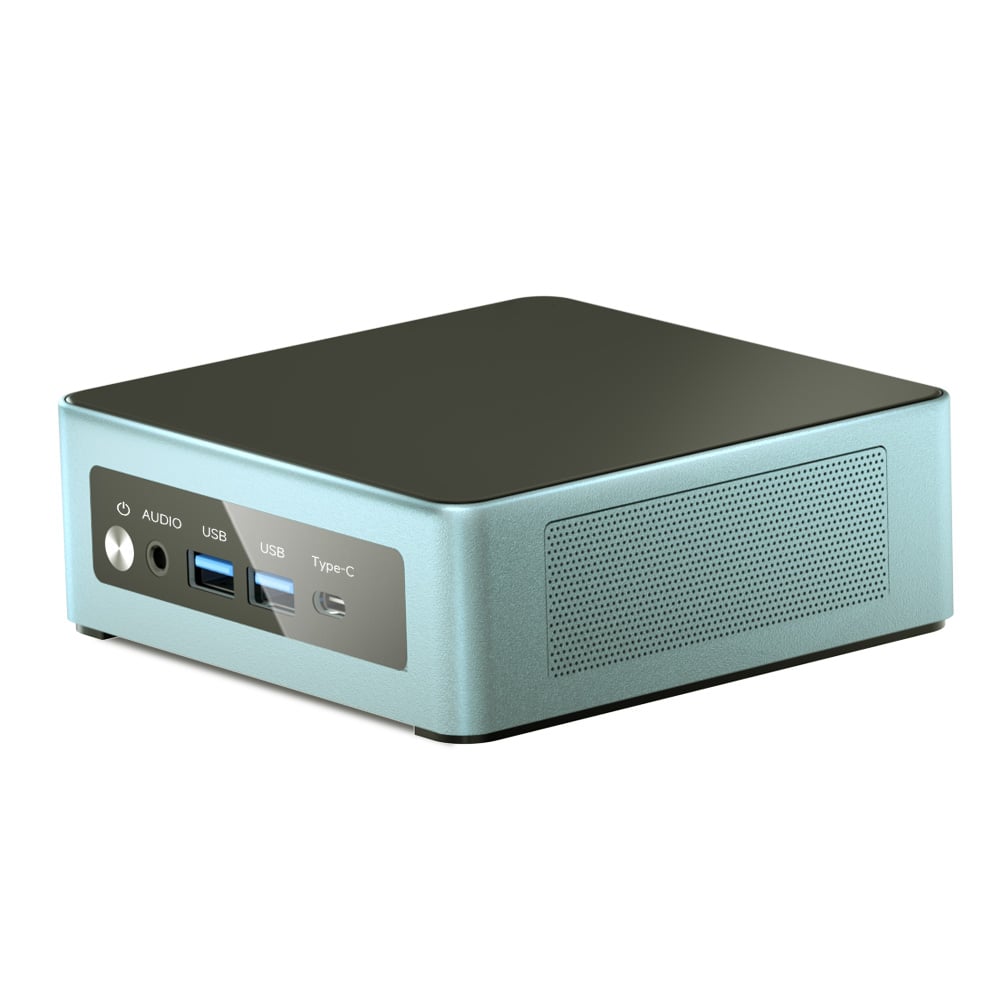

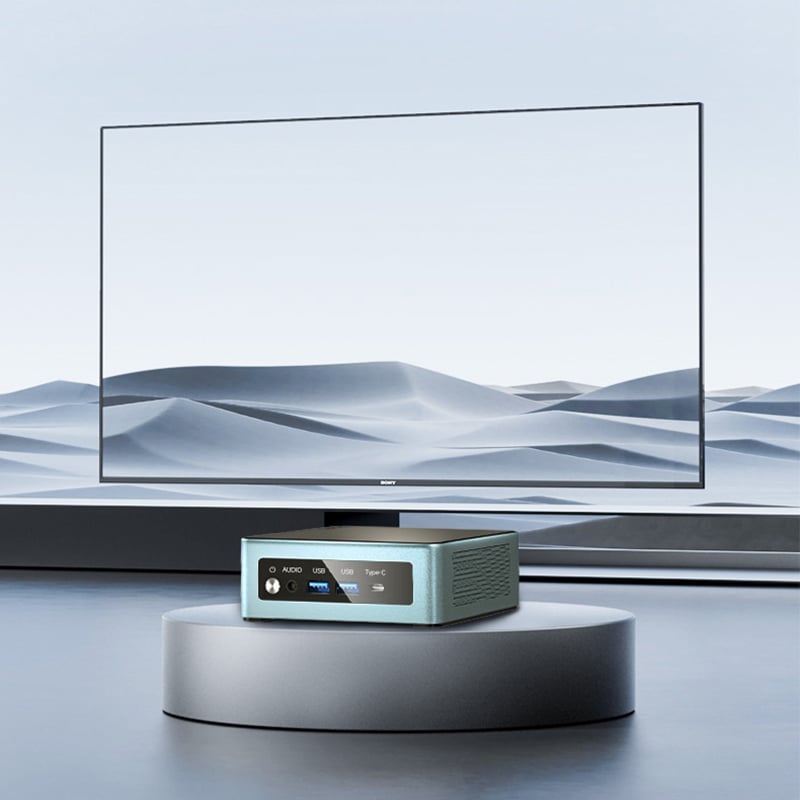

With a modern design featuring sleek lines and a stylish, brushed finish, the JMIS04 model Mini PC easily blends into home, office and retail environments. Compact and lightweight at 131mm x 131mm x 45mm, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.
| Model No. | JMIS04 |
| CPU |
AMD R5-6600H /5500U; AMD R7-6800H / 5800H / 5700U; AMD R9-6900HX / 5900HX |
| Whole unit power consumption | 35-65W |
| Memory capacity | 16GB/32GB Optional |
| Memory specifications | Notebook memory DDR5*2 frequency support 4800MHz up to 64G |
| Hard disk capacity | 128G/256G/512G/1T/2T Optional |
| Hard disk specifications | NVME 2280 M.2*1 pcie 3.0/4.0 |
| Display specifications | Support up to 4K resolution 4096/3840*2160@60Hz |
| External interfaces |
USB3.0 *2 / USB2.0 *2 HDMI *2 / TypeC *1 RJ45 2.5G*1 / 1G*1 3.5mm audio interface |
| WiFi/Bluetooth parameters | RTL8852AE M.2 WIFI6 wireless card + 5.2 Bluetooth 2.4G:574Mbps 5G:1201Mbps |
| Power supply | The diameter of the DC head is 2.5mm, and it is recommended to use 19V3.42A or above power supply |
| Mainboard size | 120mm * 124mm |
| Host size | 131mm (L)*131mm (W)*45mm (H) |
| Operating environment | Working temperature: -10℃~45℃; working humidity: 5%~95% relative humidity, no condensation |
| Notes: Customer-specified motherboards are supported. It should be noted that the interface between different motherboards will be a little different, and the final interface needs to be confirmed according to the motherboard. |
|
