Size: 138*111*37mm
CPU: Intel Core i7-11390H
Graphic Card: Integrated Graphics
Interface: DC, RJ45, HDMI*2, Type-C, USB*4, 3.5mm Audio
The ultracompact JMIS03 model Mini PC is powered by an Intel®Core TM i7-11390H with Intel Iris Xe Graphics and is designed to easily handle a wide variety of home and business applications. JMIS03 can support 4K displays, simultaneously for efficient multitasking.
| Model No. | JMIS03 |
| CPU | Intel Core I7-11390H |
| Whole unit power consumption | 35-65W |
| Memory capacity | 8G/16G/32G Optional |
| Memory specifications | Notebook memory DDR4*2 frequency support 2666/3200MHz up to 64G |
| Hard disk capacity | 128G/256G/512G/1T/2T Optional |
| Hard disk specifications | NVME 2280 M.2*1 pcie 3.0/4.0 |
| Display specifications | Support up to 4K resolution 4096/3840*2160@60Hz |

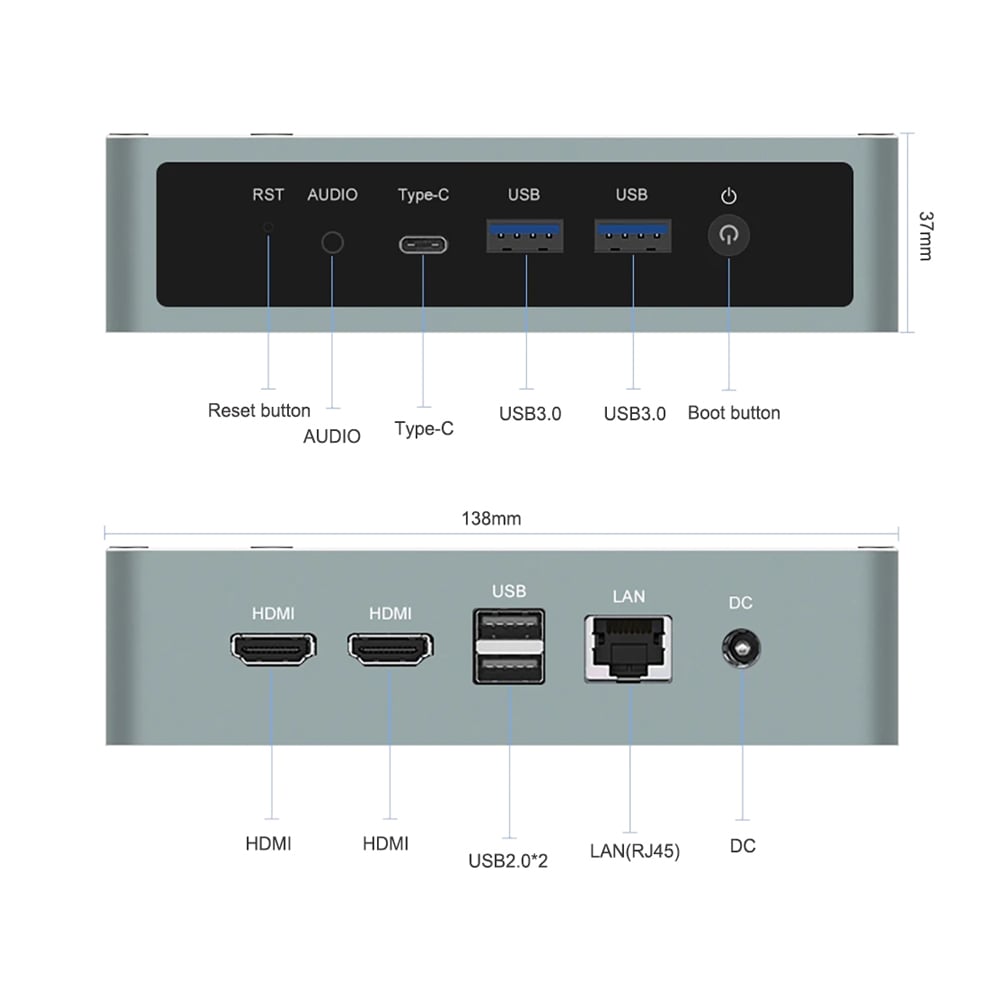

| External interfaces | USB3.0 *2 / USB2.0 *2 / HDMI *2 / TypeC *1 / RJ45 *1 / 3.5mm audio interface |
| WiFi/Bluetooth parameters | RTL8852AE M.2 WIFI6 wireless card + 5.2 Bluetooth 2.4G:574Mbps 5G:1201Mbps |
| Power supply | The diameter of the DC head is 2.5mm, and it is recommended to use 19V3.42A or above power supply |
| Mainboard size | 105mm * 115mm |
| Host size | 138mm(L)*111mm(W)*37mm(H) |
| Operating environment | Working temperature: -10℃~45℃; working humidity: 5%~95% relative humidity, no condensation |
| Notes: Customer-specified motherboards are supported. It should be noted that the interface between different motherboards will be a little different, and the final interface needs to be confirmed according to the motherboard. |
|
